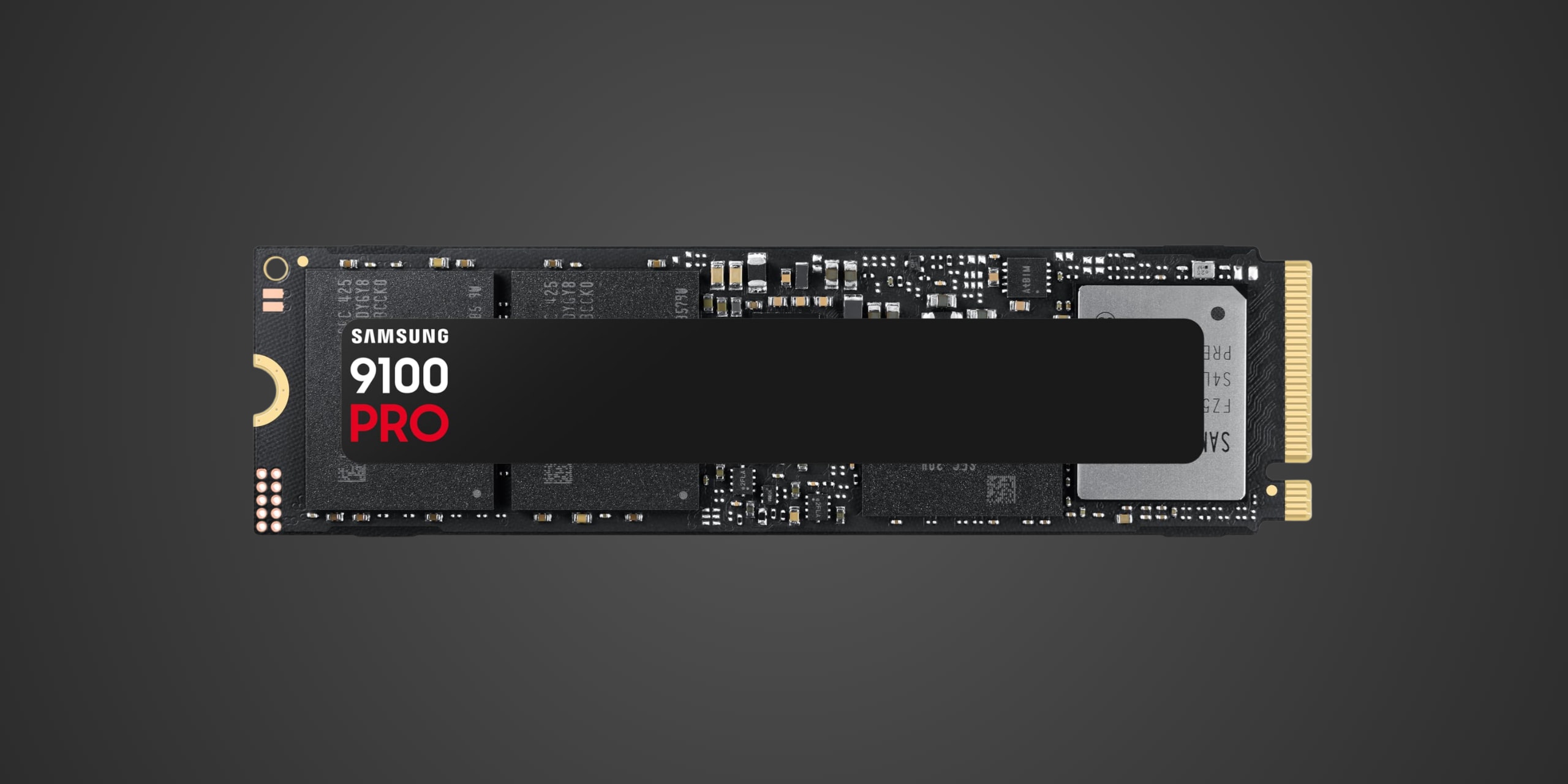

SAMSUNG 9100 PRO

Introduction

The Samsung 9100 PRO arrives fashionably late to the PCIe 5.0 party, but brings Samsung's trademark refinement to a market that's been dominated by Phison-based drives. This flagship NVMe SSD targets performance enthusiasts, high-end PC builders, and professionals who demand bleeding-edge storage speeds without the thermal drama that's plagued earlier Gen 5 drives. Available in capacities from 1TB to 8TB across M.2 2280 form factor, the 9100 PRO uses Samsung's proprietary Presto controller and 236-layer V8 TLC flash to deliver sequential speeds up to 14,800 MB/s read and 13,400 MB/s write. While it's positioned as a premium PCIe 5.0 solution, it faces stiff competition from established players like the Crucial T705 and Corsair MP700 Pro, making the value proposition worth careful consideration.

Product Overview

The Samsung 9100 PRO is built on Samsung's mature hardware foundation, featuring the new Presto controller manufactured on a 5nm process. This eight-channel controller pairs with LPDDR4X DRAM cache at the standard 1GB per TB ratio and Samsung's proven 236-layer V8 TLC NAND flash. The controller operates at a 2,400 MT/s bus speed, enabling it to saturate the PCIe 5.0 x4 interface with up to 14,800 MB/s sequential reads and 13,400 MB/s writes. Samsung offers the drive both bare and with an aluminum heatsink option, with the 1TB and 2TB models using single-sided designs while the 4TB capacity remains single-sided as well. The forthcoming 8TB model will require a double-sided configuration. Samsung's TurboWrite 2.0 technology provides a hybrid SLC cache with both static and dynamic portions, with the 2TB model offering a 226GB cache composed of 10GB static and 216GB dynamic. Security features include TCG Opal 2.0 encryption, and the drive carries a five-year warranty with endurance ratings of 600TB write endurance per terabyte of capacity.

Performance & Real World Speed

Samsung rates the 9100 PRO at up to 14,800 MB/s sequential reads and up to 13,400 MB/s sequential writes, with random performance reaching up to 2,200K read IOPS and 2,600K write IOPS at the 4TB capacity. These specifications translate to tangible real-world benefits for power users and enthusiasts. Game load times see meaningful improvements compared to PCIe 3.0 drives, particularly for DirectStorage-enabled titles that can leverage the full Gen 5 bandwidth. Large file transfers for video editing projects, game installations, and system imaging tasks benefit from the sustained sequential performance, though actual speeds settle around 12.9 GB/s during cache writes and approximately 1.9 GB/s when writing beyond the SLC cache to native TLC. Windows boot times improve modestly over previous generation flagships like the 990 PRO, but the difference is less dramatic than the jump from SATA to PCIe 4.0. The drive excels in mixed workload scenarios and maintains consistent performance across varying queue depths, with particularly strong sequential read performance at QD1 where real-world responsiveness matters most. While the 9100 PRO doesn't set outright performance records in every metric compared to competitors like the Crucial T705 or Micron 4600, it delivers a well-rounded experience that feels reliably fast across diverse use cases without the thermal throttling issues that have plagued some early PCIe 5.0 drives.

Thermal Management

The PCIe 5.0 interface brings substantial heat generation, and the 9100 PRO is no exception to this reality. Samsung's V8 flash and Presto controller run warm under sustained loads, reaching maximum temperatures around 67°C during intensive testing in optimal cooling conditions. This places the drive comfortably 15-25°C below the first throttling threshold, demonstrating Samsung's focus on thermal efficiency over raw maximum performance. The bare drive includes only a minimal label for heat dissipation, making the optional heatsink version a worthwhile consideration for most users. Samsung offers a proprietary aluminum heatsink that adds minimal height, with the 2TB and 4TB versions measuring 8.88mm total height including the heatsink while the 8TB model reaches 11.25mm. This makes the drive suitable for PlayStation 5 internal expansion, which mandates both a heatsink and maximum height restrictions. Motherboard M.2 heatsinks generally provide adequate cooling for the 9100 PRO in desktop systems with good airflow, but laptop use should be approached cautiously as Samsung drives have historically run warm in constrained thermal environments. The drive's power efficiency helps manage heat output, consuming less power than Phison E26-based alternatives while delivering comparable performance. Users building in compact cases or installing the drive under a graphics card should strongly consider either the factory heatsink option or ensure their motherboard provides robust M.2 cooling solutions. For sustained write workloads exceeding the SLC cache capacity, active cooling or substantial passive heatsinks become increasingly important to maintain optimal performance without thermal throttling.

Compatibility

The Samsung 9100 PRO requires a motherboard with an M.2 socket supporting PCIe 4.0 or 5.0 x4 connectivity, utilizing the standard M key configuration. The drive is backward compatible with PCIe 4.0 and 3.0 interfaces, though performance will be limited to the capabilities of the older standards. Most modern AMD and Intel platforms from the last several years support PCIe 4.0, with newer chipsets like Intel's Z790 and AMD's X670/X870 offering native PCIe 5.0 M.2 slots. BIOS/UEFI updates may be required on some older boards for full NVMe 2.0 compatibility, though this is rarely an issue with mainstream motherboards from the past few years. The drive works seamlessly with Windows 10/11, Linux distributions with modern kernels, and macOS when installed in compatible Mac systems. Power requirements are standard for high-performance NVMe drives and won't strain any reasonable desktop power supply.

For PlayStation 5 internal expansion, the 9100 PRO meets Sony's requirements with read speeds exceeding the 5,500 MB/s minimum threshold, M.2 2280 form factor compatibility, and PCIe 4.0 interface support. However, the heatsink version is mandatory for PS5 use as Sony requires all expansion drives to include cooling, and the total height must remain under 11.25mm. The 2TB and 4TB models with heatsinks fall within this specification. It's worth noting that while the 9100 PRO works perfectly in the PS5, more affordable PCIe 4.0 drives deliver virtually identical gaming performance at significant cost savings, making this overkill for console storage unless you're planning to move the drive to a PC later.

For Xbox Series X/S, this drive is NOT compatible with internal storage expansion. Microsoft's consoles exclusively use proprietary Seagate Storage Expansion Cards for internal-speed storage of optimized titles. The 9100 PRO can be used as external storage via a USB enclosure, but would only run Xbox One games at full speed while Series X/S optimized titles must be stored on the proprietary cards or moved to internal storage to play.

Strengths & Weaknesses

The Samsung 9100 PRO delivers a refined PCIe 5.0 experience that prioritizes consistency and thermal efficiency over record-breaking benchmark numbers. Its sequential read performance stands out particularly at low queue depths where real-world responsiveness matters most, and the drive maintains excellent power efficiency compared to Phison E26-based competitors like the Crucial T705. Samsung's proven V8 TLC flash provides solid endurance ratings at 600TB per terabyte of capacity, backed by a comprehensive five-year warranty and the industry-leading Samsung Magician software for drive management, firmware updates, and health monitoring. The single-sided design on 2TB and 4TB capacities offers versatility for laptop upgrades and compact systems, while the optional factory heatsink provides reliable cooling without the trial-and-error of aftermarket solutions. The drive's thermal behavior is predictable and well-managed, running 15-25°C below throttling thresholds under sustained load with adequate cooling.

However, the 9100 PRO's late arrival to the PCIe 5.0 market means it doesn't command the category in every metric. Random 4K performance is merely competitive rather than class-leading, and sustained write speeds after cache exhaustion at around 1.9 GB/s trail options like the Sabrent Rocket 5. The drive's MSRP pricing positions it as a premium option, with the 2TB model launching at $299.99 compared to street prices around $229-239 for similarly performing competitors. Samsung's decision to use mature V8 flash and an evolutionary controller design, while sensible from a reliability standpoint, means the 9100 PRO feels more like an optimized PCIe 4.0 successor than a revolutionary Gen 5 product. The lack of cutting-edge features or standout performance in transfer workloads makes it harder to justify the premium over established alternatives unless Samsung's brand reputation and software ecosystem carry particular value for your use case. For PlayStation 5 users specifically, the 9100 PRO represents significant overkill when excellent PCIe 4.0 drives deliver identical gaming performance at half the cost.

Verdict: Should You Buy It?

Buy this if:

• You're building a new high-end gaming or workstation PC and want Samsung's proven reliability and software support
• You value thermal efficiency and power consumption alongside raw performance in a PCIe 5.0 drive
• You're upgrading from a PCIe 3.0 or SATA SSD and want a substantial performance leap
• You need single-sided capacity up to 4TB for laptop upgrades or compact systems
• Samsung Magician software and warranty support are important to your purchasing decision
• You can find the drive on sale at competitive pricing with the Crucial T705 and Corsair MP700 Pro

Skip this if:

• You already own a high-performance PCIe 4.0 drive like the 990 PRO and the upgrade cost doesn't justify marginal gains
• Absolute maximum transfer speeds and benchmark performance are your priority
• You're shopping on a tight budget and can't justify premium pricing over excellent mid-range PCIe 4.0 alternatives
• You're specifically buying for PlayStation 5 storage expansion and don't need PC-level Gen 5 performance
• You need the absolute best sustained write performance beyond the SLC cache for professional workloads
• Better value options from Crucial, Corsair, or other manufacturers offer similar real-world performance at lower prices
