SABRENT M.2 Heatsink

^{Efficient thermal management | Copper & aluminum construction | Wide compatibility}

Introduction

In the ever-evolving landscape of PC hardware, performance gains are often met with an increase in thermal output. This is especially true for modern M.2 NVMe solid-state drives, which have become the standard for high-speed storage. As these drives push the boundaries of data transfer with PCIe Gen 4 and Gen 5 interfaces, the controllers and NAND flash memory on board generate significant heat. This heat, if left unchecked, can lead to thermal throttling, a self-preservation mechanism where the drive reduces its performance to cool down. For enthusiasts, gamers, and content creators who rely on sustained, high-speed storage, thermal throttling can be a major bottleneck. The SABRENT M.2 Heatsink emerges as a critical component to address this issue, providing a dedicated cooling solution designed to maintain optimal operating temperatures and unlock the full, unthrottled potential of your M.2 SSD. It is a product that speaks directly to the DIY community, offering a straightforward yet highly effective way to enhance system stability and performance.

Product Overview

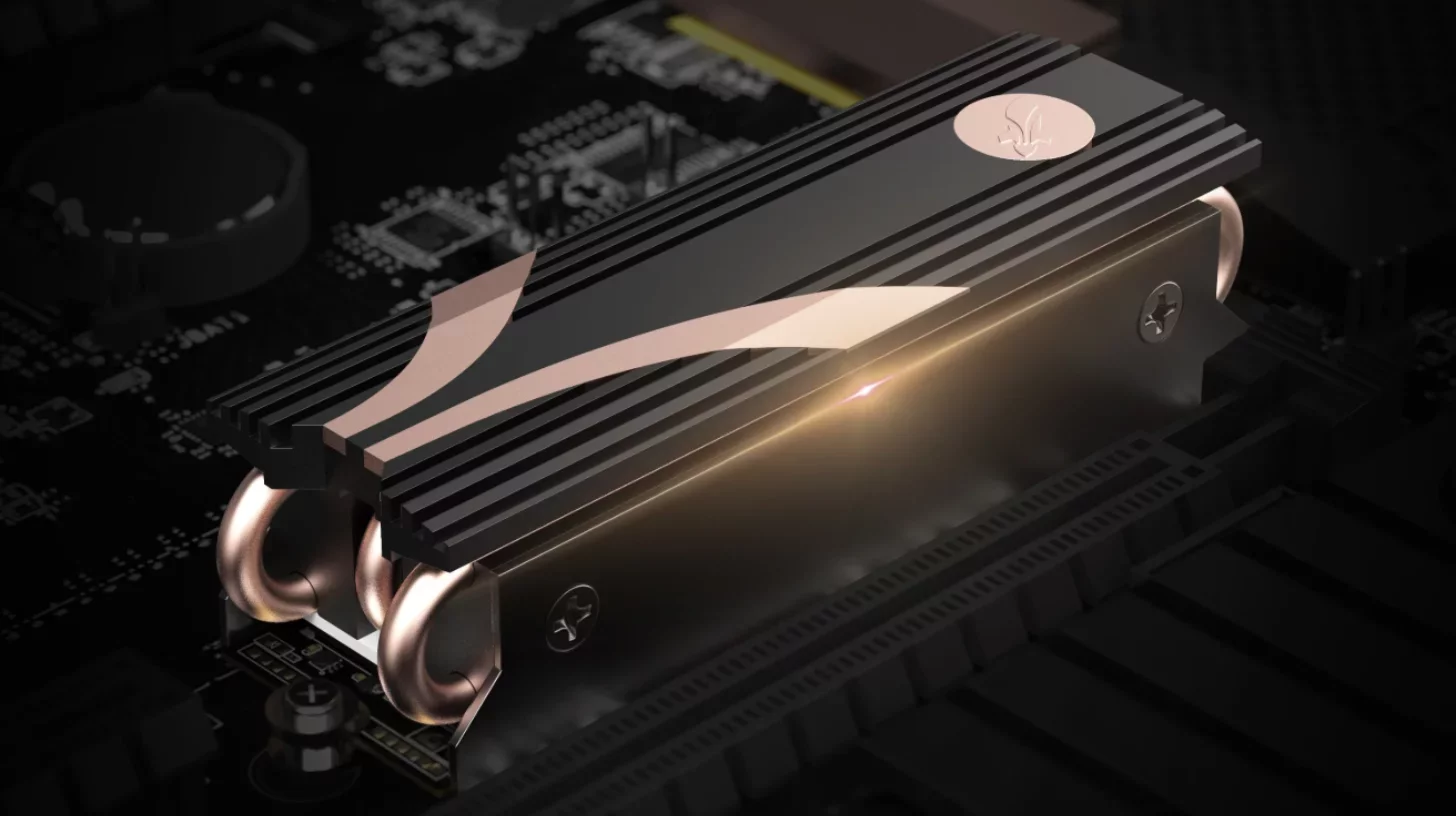

The SABRENT M.2 Heatsink is a passive cooling solution engineered to manage the heat generated by M.2 2280 form factor solid-state drives. It is designed for tech-savvy consumers who are building new systems, upgrading their existing ones, or seeking to resolve thermal throttling issues with their high-performance SSDs. The heatsink is a multi-component system, typically consisting of a main aluminum block, a copper heat pipe or base, and a thermal pad.

 The design philosophy is simple: to provide a large surface area for heat dissipation without relying on active components like fans. Its purpose is to draw heat away from the SSD's critical components and radiate it into the surrounding air within the PC case. The heatsink's construction and dimensions are carefully considered to ensure it fits within the confines of most desktop motherboards, a key factor for its widespread appeal. By offering an easy-to-install and robust thermal solution, SABRENT empowers users to get the most out of their expensive, high-speed storage devices.

Key Features

The heatsink is distinguished by several key features that contribute to its effectiveness and user-friendly design. These features are a direct response to the common challenges faced by consumers with high-performance NVMe SSDs.

Hybrid Material Construction

One of the most significant aspects of the SABRENT heatsink is its use of a hybrid material design, often combining copper and aluminum. Copper, with its superior thermal conductivity, is strategically placed at the base of the heatsink to make direct contact with the SSD's controller and NAND chips via a thermal pad. This allows it to rapidly absorb heat from the source. The heat is then transferred to the larger, finned aluminum body of the heatsink. Aluminum, while not as thermally conductive as copper, is lightweight and can be easily shaped into complex fin structures, which dramatically increases the surface area for heat to dissipate into the surrounding air. This combination of materials provides a powerful one-two punch, ensuring efficient heat absorption and effective radiant cooling. This is a crucial distinction from simpler, all-aluminum heatsinks, as the copper element is vital for handling the intense thermal spikes that modern SSDs can produce.

“Sandwich” Design with Even Pressure

Another notable feature is the "sandwich" design, which involves a top and bottom plate that enclose the SSD. This design is more than just an aesthetic choice; it is a functional element that ensures consistent and even pressure is applied across the entire surface of the SSD's components. Unlike heatsinks that use simple clips or a single top plate, the SABRENT design prevents warping of the SSD and guarantees maximum contact between the thermal pads and the drive's chips. This uniform pressure is critical for optimal heat transfer, as any air gaps or uneven contact can severely compromise cooling performance. The design simplifies installation by providing a secure, snug fit that aligns the SSD and heatsink perfectly, eliminating the guesswork and potential for user error that can be common with more rudimentary solutions.

Passive and Fan-less Operation

The SABRENT M.2 Heatsink operates as a passive cooling solution. It does not require any additional power cables or a separate fan. This is a major benefit for users who are mindful of noise levels and system clutter. The heatsink relies entirely on the natural airflow within the PC case to function effectively. This fan-less approach means zero added noise, making it an ideal choice for silent PC builds or for users who simply want to minimize the number of moving parts in their system. The grooved fins and large surface area are specifically engineered to take advantage of even minimal case airflow, ensuring that the heatsink is always working to manage temperatures without any active intervention. This simplicity in design and operation contributes to a highly reliable and maintenance-free solution for thermal management.

Performance Analysis

Thermal Management

The core purpose of the heatsink is thermal management, and it excels in this regard. The combination of a copper base and an aluminum fin array provides an effective path for heat to travel away from the SSD. The thermal pads included with the heatsink ensure a perfect thermal connection to the drive's components. During intensive benchmarks and prolonged use, the heatsink demonstrably lowers the SSD's operating temperature, often by a significant margin. This reduction in temperature is the key to preventing thermal throttling. By maintaining a lower, more stable temperature, the heatsink extends the lifespan of the SSD and ensures its long-term reliability. It is a proactive solution that protects a valuable component from the damaging effects of excessive heat, guaranteeing that your storage investment continues to perform at its best for years to come.

Compatibility

A key consideration for any DIY component is its compatibility with a wide range of hardware. The heatsink is designed with a specific focus on accommodating various systems, and its form factor allows for broad application.

PlayStation 5

This version of the  SABRENT M.2 Heatsink is not compatible with the PS5 but Sabrent manufactures a specific heatsink model designed for the PlayStation 5. This specialized product, often labeled as the "SABRENT M.2 NVMe Heatsink for The PS5 Console" (model number SB-PSHS), is engineered to fit perfectly into the PS5's SSD expansion slot.

Desktops and laptops

This Heatsink is primarily designed for desktop computers. Its dimensions and mounting mechanism are compatible with the M.2 slots found on most modern motherboards. The heatsink is designed to work with both single-sided and double-sided M.2 2280 SSDs, offering flexibility for various drive types. It fits into the standard M.2 slot and is secured with the included screws, ensuring a stable and reliable installation.

For laptops, however, it is not compatible due to its height and robust design.

Advantages and Limitations

Like any product, the SABRENT M.2 Heatsink offers a set of distinct advantages and a few constraints that potential buyers should be aware of.

Strengths

One of the primary strengths of the heatsink is its superior build quality and material selection. The combination of a copper base and an aluminum fin array provides a level of thermal performance that surpasses many of the thin, stock heatsinks often included with motherboards. The robust construction and "sandwich" design ensure that the heatsink is both durable and effective, providing consistent and reliable cooling over the long term. This focus on quality and engineering is a major selling point for enthusiasts.

A second major strength is its ease of installation. The heatsink comes as a complete kit, including thermal pads, screws, and even a small screwdriver. The design simplifies the process of mounting the SSD, reducing the chance of misalignment or improper contact. This user-friendly approach makes it accessible to a wider range of users, from seasoned PC builders to those performing their first SSD upgrade.

Constraints

A notable limitation of the heatsink is its physical size. While its size is a strength for cooling performance in a desktop environment, it can be a significant drawback. The heatsink's height can interfere with other components on the motherboard, such as large CPU air coolers or graphics cards, particularly when the M.2 slot is located in a tight space. Users must carefully measure their available clearance before purchasing to avoid compatibility issues.

Another constraint is the specific design for the desktop. The standard heatsink is not a universal solution for all M.2 devices. Its design is not suitable for laptops, thin-and-light PCs, or other devices with extremely limited internal space, such as the PS5 and Steam Deck. This specialization means that while it is an excellent product for its intended use cases, its application is limited beyond those specific scenarios.

Conclusion

The SABRENT M.2 Heatsink is an excellent and highly recommended product for anyone seeking to optimize the performance and longevity of their M.2 NVMe SSD. It is a purpose-built solution that directly addresses the critical issue of thermal throttling, which can plague modern high-speed storage drives. Its hybrid material construction, "sandwich" design, and passive cooling approach make it a powerful and reliable component for desktop PC builders and PlayStation 5 enthusiasts.

The heatsink's ability to maintain stable temperatures during both sustained sequential transfers and random access workloads ensures that the SSD operates at its maximum potential at all times. This translates to faster boot times, quicker application launches, and reduced load times in games. While its size presents a compatibility consideration for some desktop configurations and its use is not recommended for most laptops, its performance and build quality within its target use cases are exceptional. For DIY builders looking to get the most out of their high-end storage, the heatsink is a wise investment that provides peace of mind and tangible performance benefits.

Works Cited

"M.2 2280 SSD Rocket Heatsink." Sabrent, sabrent.com/products/sb-htss.

"M.2 NVMe Heatsink for The PS5 Console." Sabrent, sabrent.com/products/sb-pshs.

"M.2 SSD Heatsink - Sabrent." Newegg, www.newegg.com/p/0VN-0036-00093.
