Introduction

If you've been watching the PCIe 5.0 storage space, you've probably noticed something interesting—the second wave of Gen5 drives promises speeds that would have seemed absurd just two years ago. The GIGABYTE AORUS Gen5 12000 SSD arrives as the company's answer to this escalating bandwidth race, pushing sequential speeds past 12,000 MB/s on paper while wrapping everything in one of the most aggressive cooling solutions we've seen bundled with a consumer drive. Available in 1TB and 2TB capacities, this drive leverages Phison's ubiquitous E26 controller paired with Micron's 232-layer 3D TLC NAND to target PC enthusiasts, content creators, and anyone working with massive files who refuses to tolerate Gen4 transfer times. The catch? Performance scaling between capacities matters more here than on any drive we've tested, and the 1TB model struggles to justify its premium pricing when stacked against its 2TB sibling—or frankly, against high-end Gen4 alternatives.

Product Overview

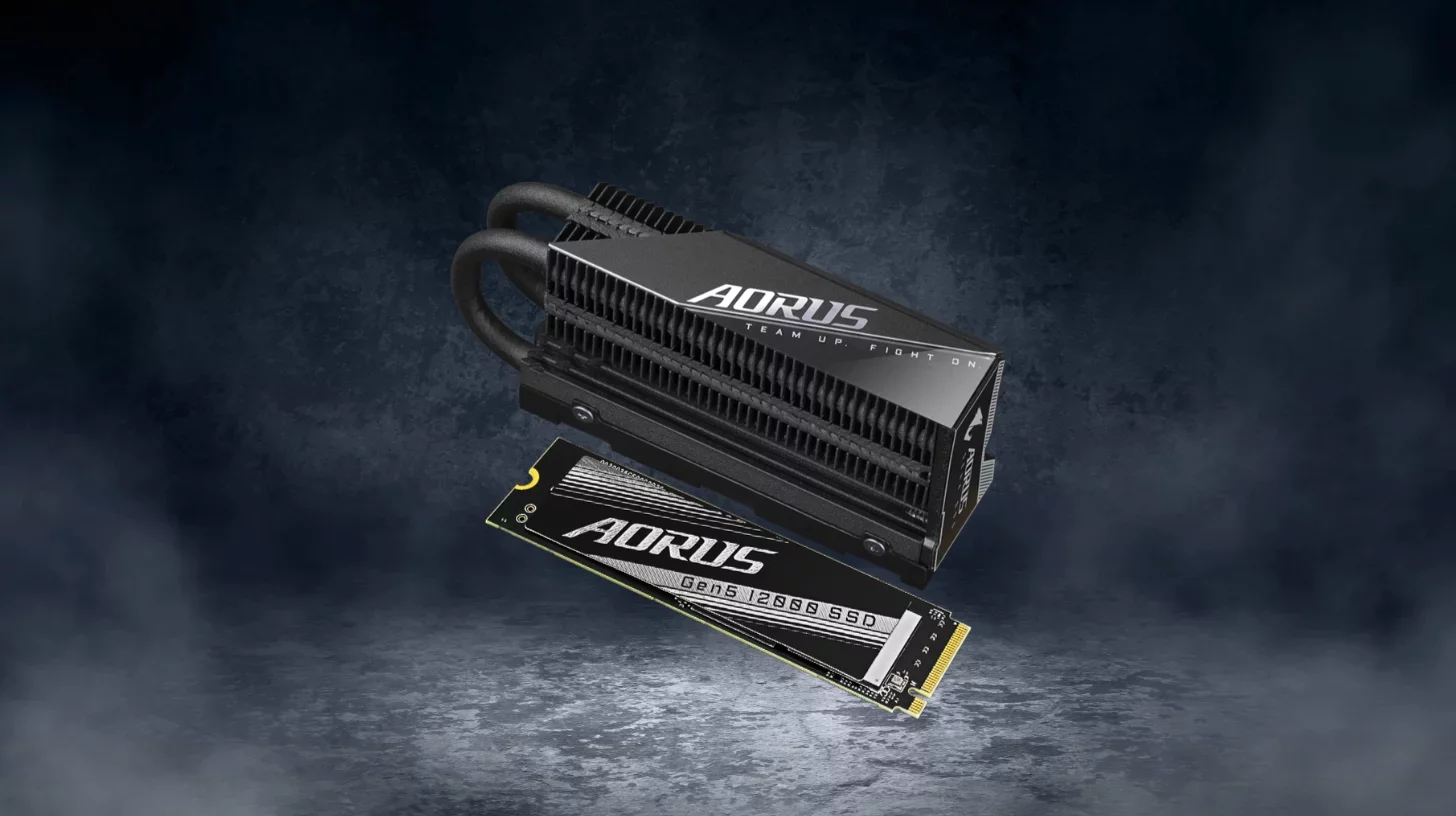

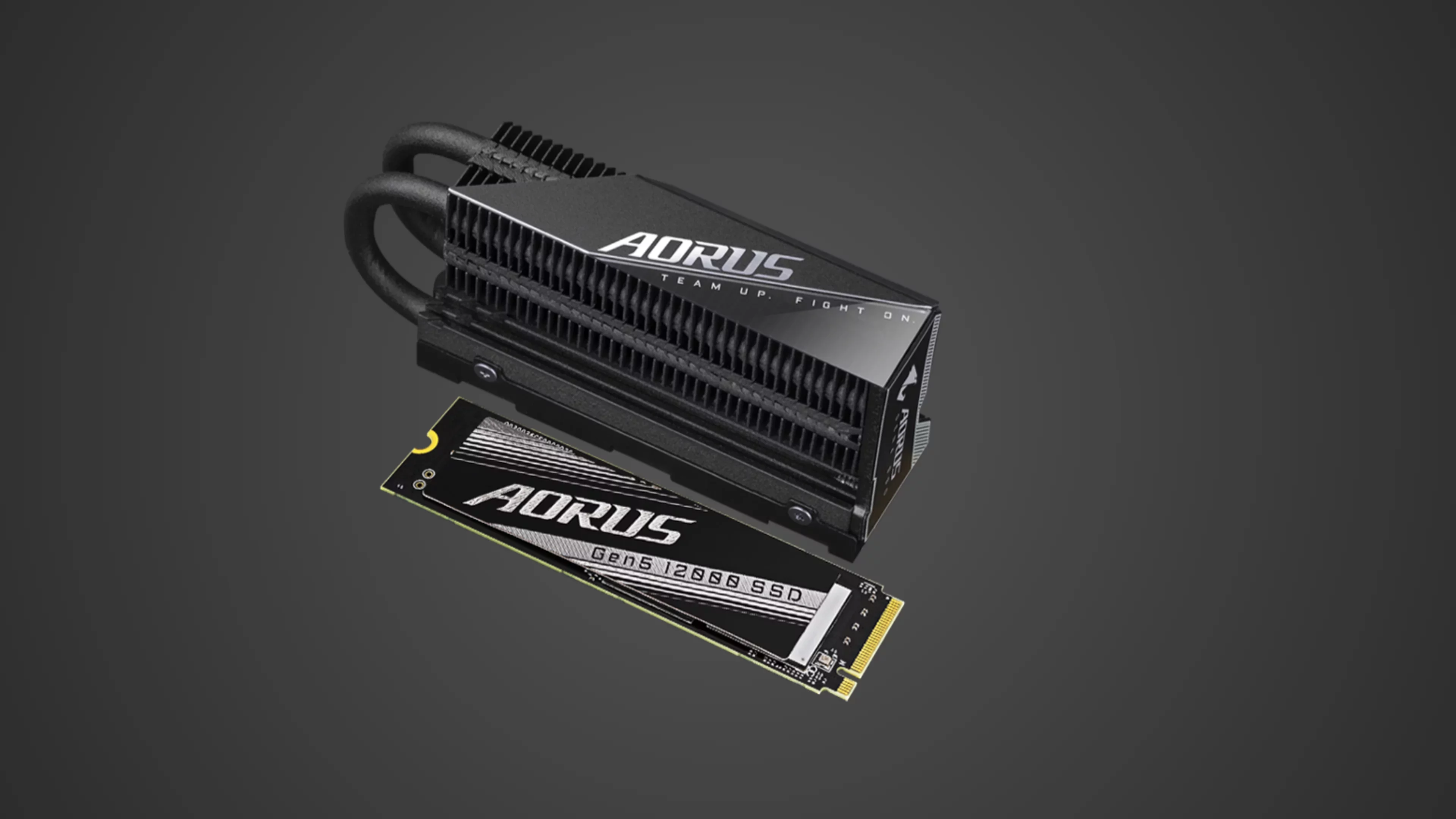

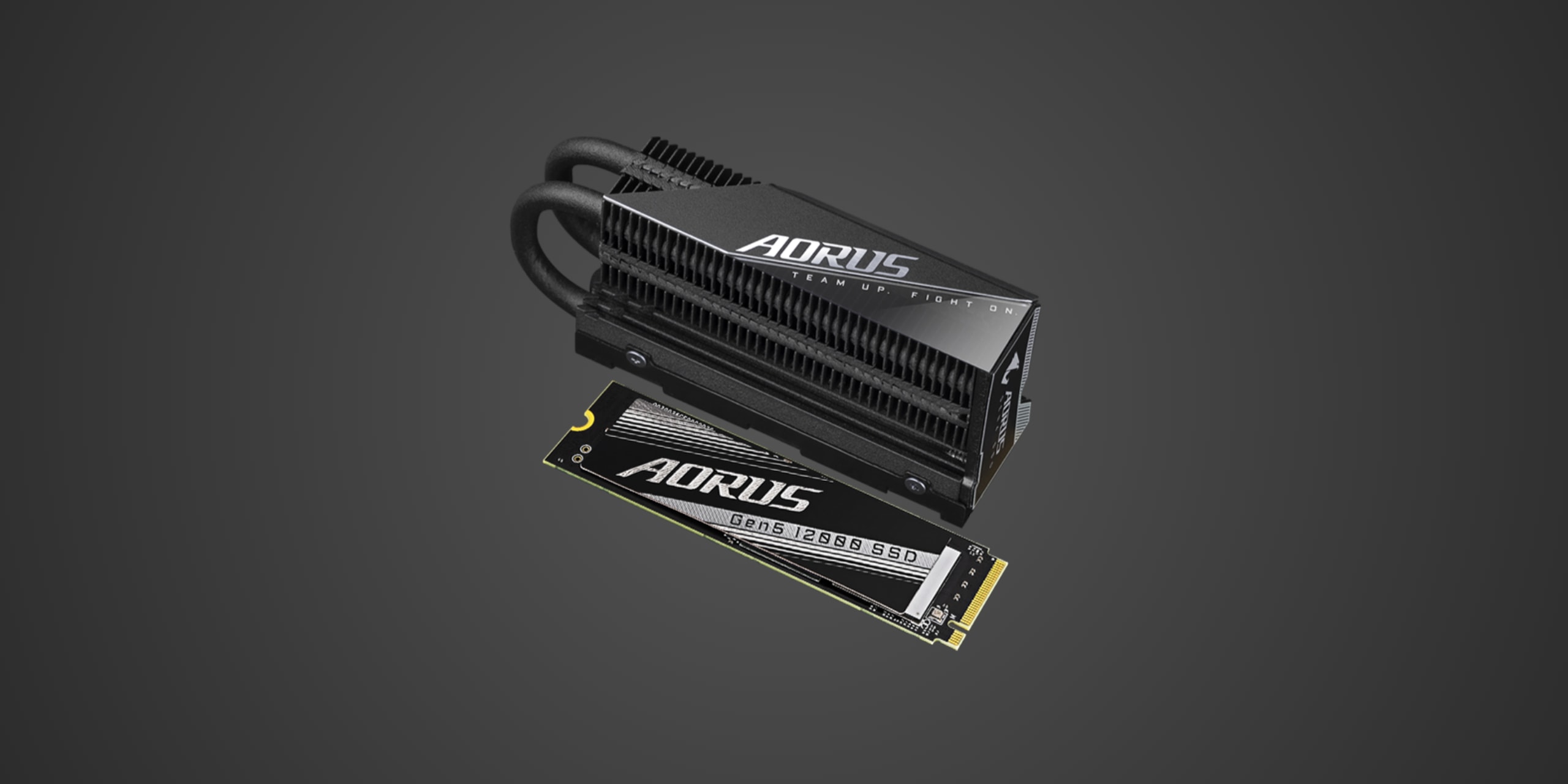

The AORUS Gen5 12000 is built around Phison's PS5026-E26 controller, which is the de facto standard for second-generation PCIe 5.0 drives hitting the market in late 2023 and beyond. This drive uses the standard M.2 2280 form factor, measuring 80 x 22 x 2.3mm without the heatsink—roughly the dimensions of a pack of gum stretched lengthwise. GIGABYTE wraps the drive in its signature AORUS aesthetic, though you'll rarely see the bare drive since the included M.2 Thermal Guard XTREME heatsink dominates the visual presentation. That cooler measures a substantial 92 x 23.5 x 44.7mm and weighs considerably more than the drive itself, featuring dual copper heatpipes, stacked aluminum fins, nanocarbon coating for enhanced thermal dissipation, and dual-sided high-conductivity thermal pads. This isn't just a decorative metal plate slapped on top—it's specifically engineered to prevent the thermal throttling that plagued early Gen5 drives, with one heatpipe intentionally offset to provide clearance for massive tower CPU coolers.

The drive ships with the heatsink packaged separately, giving you flexibility to use your motherboard's integrated M.2 cooling if you prefer—though GIGABYTE's testing suggests their solution keeps temperatures significantly lower under sustained loads. Available in 1TB and 2TB capacities with staggered performance specifications, the Gen5 12000 uses Micron's 232-layer 3D TLC NAND configured across eight channels with 32 chip enables, backed by DDR4 DRAM cache for rapid metadata access. GIGABYTE backs the drive with a standard five-year limited warranty and rates endurance at 700TB writes per terabyte of capacity, which translates to 700TB for the 1TB model and 1,400TB for the 2TB variant. The drive complies with NVMe 2.0 standards and integrates with GIGABYTE's Control Center software for health monitoring and firmware updates.

Performance & Real World Speed

GIGABYTE claims the 1TB Gen5 12000 delivers up to 11,700 MB/s sequential read and up to 9,500 MB/s sequential write, while the 2TB model pushes those figures to 12,400 MB/s read and 11,800 MB/s write—a substantial performance gap that immediately signals capacity-dependent limitations. In real-world testing conducted by multiple reviewers using CrystalDiskMark, the 1TB model consistently hit its rated sequential speeds in queue depth 32 scenarios, touching 11.7 GB/s reads and 9.5 GB/s writes. The drive scored exceptionally well in 3DMark's gaming storage benchmark, demonstrating that game loading and installation scenarios benefit from the raw bandwidth advantage Gen5 provides.

However, the picture becomes considerably murkier when you examine workloads beyond synthetic sequential tests. In StorageReview's enterprise-focused benchmarks, the 1TB Gen5 12000 delivered 770K IOPS at 165.5 microseconds latency in 4K random reads—landing far behind leading Gen4 drives like the Solidigm P44 Pro and even trailing its own predecessor. Sequential write performance at lower queue depths collapsed to around 1 GB/s in sustained testing, significantly worse than first-generation 10,000 MB/s Gen5 drives. The culprit? That 110GB pseudo-SLC cache operates brilliantly during burst writes, but once it fills, performance craters to 1,900 MB/s for sustained sequential writes and 1,000 MB/s during SLC folding operations—numbers that feel borderline inadequate for a drive commanding Gen5 pricing.

TweakTown's testing painted a rosier picture, declaring the 1TB model the highest-performing retail 1TB flash-based SSD they'd tested in PCMark 10 storage benchmarks, though they acknowledged this required a properly tuned high-end Intel platform to achieve. The stark reality is that the 1TB configuration struggles with workload consistency—it'll blaze through short burst transfers and game loading scenarios where sequential reads dominate, but falters during sustained mixed workloads where lower queue depth random performance and write endurance matter more. Tom's Hardware noted the drive easily takes first place in 3DMark gaming benchmarks but cautioned that everyday performance gains over Gen4 remain marginal outside bandwidth-specific scenarios. Game boot times show minimal perceptible differences compared to premium Gen4 alternatives, and the real-world experience gap narrows considerably once you're actually playing rather than loading.

Build Quality & Durability

GIGABYTE's AORUS brand leans heavily into its gaming-focused industrial aesthetic, and the Gen5 12000's M.2 Thermal Guard XTREME exemplifies this approach with its aggressive black finish, prominent heatpipe placement, and ridged aluminum fins. The heatsink feels reassuringly substantial in hand, and the nanocarbon coating—technology GIGABYTE also deploys on some motherboard heatsinks—isn't just marketing theater. Multiple reviewers confirmed the cooling solution effectively prevents thermal throttling even under sustained benchmark runs, with temperatures peaking around 75°C during stress testing compared to 90°C-plus figures that trigger slowdowns on bare Gen5 drives. The passive design means zero noise output, a significant advantage over competing solutions that resort to tiny, whiny fans to manage Gen5's thermal output.

Manufacturing quality appears solid throughout, with tight tolerances on the heatsink mounting hardware and thermal pads that make full contact across the drive's surface. Installation requires removing the heatsink's mounting screws, applying the included thermal pads to both sides of the bare drive, then reassembling—straightforward enough for anyone comfortable building PCs, though the heatsink's substantial height demands checking clearance against first-slot graphics cards and oversized CPU coolers. GIGABYTE provides an incompatibility list documenting which motherboard and cooler combinations won't work with the Thermal Guard XTREME installed, acknowledging that this cooling solution prioritizes performance over universal fitment.

The five-year warranty signals confidence in long-term reliability, and the 700TBW endurance rating per terabyte aligns with industry standards for consumer TLC drives—you'd need to write nearly 400GB daily for five years straight to exhaust the 1TB model's rated lifespan. Whether this aggressive cooling matters given your specific use case depends entirely on your motherboard's integrated M.2 cooling and case airflow situation. If you're running a well-ventilated build with quality motherboard heatsinks, GIGABYTE's solution might be overkill. If you're building in a compact case with minimal airflow or using an AIO CPU cooler that doesn't direct air across M.2 slots, the Thermal Guard XTREME becomes genuinely valuable.

Compatibility

The AORUS Gen5 12000 SSD is a universal M.2 2280 PCIe drive compatible with any desktop motherboard featuring an M.2 slot supporting PCIe 4.0 or 5.0 NVMe drives. This includes modern Intel Z790, B760, AMD X870E, X870, B850, and previous-generation platforms—basically any motherboard from the past several years will physically accept and boot from this drive. However, achieving the advertised Gen5 speeds requires specific hardware: your motherboard must feature a PCIe 5.0 x4 M.2 slot, and that slot needs direct CPU lanes rather than chipset-connected paths that bottleneck bandwidth. GIGABYTE specifically recommends pairing the Gen5 12000 with their Z790 AORUS XTREME, Z790 AORUS MASTER, Z790 AERO G, X670E AORUS XTREME, and X670E AORUS MASTER motherboards to guarantee optimal performance—though any quality board with CPU-direct Gen5 M.2 support will work fine.

Critically, you need to understand what this drive can and cannot do in terms of platform compatibility. The Gen5 12000 works perfectly in any standard PC desktop build running Windows 10, Windows 11, or Linux distributions with NVMe support. It will function in PCIe 4.0 slots at Gen4 speeds, making it technically backwards compatible though you're obviously paying for bandwidth you can't use. The drive supports all standard NVMe features including TRIM and S.M.A.R.T. monitoring, integrates with GIGABYTE's Control Center software on Windows systems for health tracking and firmware updates, and boots like any other NVMe drive.

What it cannot do? The AORUS Gen5 12000 is absolutely not compatible with PlayStation 5 consoles—PCIe 5.0 drives currently don't work reliably in the PS5's expansion slot, and the Thermal Guard XTREME's dimensions exceed Sony's clearance specifications regardless. You cannot use this drive in laptops due to the thermal output and power requirements that make Gen5 drives unsuitable for mobile platforms until future controller revisions improve efficiency. This is desktop-exclusive hardware built for enthusiast PC platforms where every second of transfer time matters. If you need PS5 storage expansion, stick with Gen4 drives featuring PS5-compliant heatsinks like the ADATA Legend 960 Max or WD_BLACK SN850X. If you need laptop storage, Gen4 remains your best option until the industry delivers power-efficient Gen5 controllers.

Strengths & Weaknesses

The AORUS Gen5 12000's greatest strength lies in its raw sequential bandwidth when properly configured on a Gen5-capable platform—the 2TB model genuinely delivers on its 12,000+ MB/s promises in burst scenarios, and even the 1TB variant hits impressive numbers during short sequential transfers. The included M.2 Thermal Guard XTREME represents one of the most effective passive cooling solutions bundled with any consumer SSD, consistently preventing the thermal throttling that plagued first-generation Gen5 drives and doing so without adding fan noise to your system. GIGABYTE's decision to package the heatsink separately rather than pre-installing it gives builders flexibility to choose between the included cooler and motherboard-integrated solutions, a thoughtful touch that competing manufacturers often overlook. Gaming performance specifically impresses, with 3DMark storage benchmarks placing the Gen5 12000 at the top of charts—game installations and large file transfers benefit noticeably from the bandwidth advantage, particularly when working with 100GB+ modern titles.

The drive's build quality and included warranty inspire confidence, and GIGABYTE's Control Center integration provides convenient health monitoring for users already in the AORUS ecosystem. At launch pricing, the Gen5 12000 undercut some competing second-generation Gen5 drives, making it a reasonable option for enthusiasts willing to pay the Gen5 premium for absolute maximum bandwidth. TweakTown's testing showed the 1TB model achieving record-breaking PCMark scores on properly configured Intel platforms, demonstrating that peak performance exists for users with the right hardware foundation.

However, the AORUS Gen5 12000 isn't without substantial limitations that become impossible to ignore once you move past synthetic benchmarks. The fundamental weakness affecting all second-generation Gen5 drives—not just GIGABYTE's but also the Crucial T700, Corsair MP700 Pro, and Teamgroup Z540—remains their inability to demonstrate meaningful real-world performance advantages over premium Gen4 drives in everyday workloads. StorageReview's mixed workload testing revealed disappointing results, with the 1TB Gen5 12000 trailing behind high-end Gen4 alternatives in random performance and sustained write scenarios that matter for database work, virtual machines, and content creation beyond pure sequential transfers. The drive's pseudo-SLC cache, while generous at 110GB, eventually fills during large sustained writes, and the post-cache performance collapse to 1,900 MB/s feels borderline inadequate for a drive positioned as a flagship product.

The capacity-dependent performance gap creates an uncomfortable purchasing dilemma—the 1TB model costs around $160 while delivering notably inferior performance compared to the 2TB variant's $260-280 pricing, and XDA Developers bluntly labeled the 1TB version "a bad version of a good SSD." You're essentially paying a 40-50% premium per gigabyte for the smaller capacity while accepting measurably worse sequential write speeds and random performance. Tom's Hardware explicitly recommended against the 1TB model, noting that capacity matters significantly more on Gen5 drives than previous generations due to parallelism requirements across NAND dies. The real competition isn't between the AORUS Gen5 12000 and competing Gen5 drives—it's between paying Gen5 premiums versus sticking with proven Gen4 alternatives like the Samsung 990 Pro or WD_BLACK SN850X that cost $80-100 for 1TB while delivering 95% of the real-world performance for half the price.

Availability has proven inconsistent since launch, with Tom's Hardware noting backorder situations that impact both pricing and actual ability to purchase the drive. The Thermal Guard XTREME's substantial dimensions, while effective, create compatibility concerns with certain motherboard layouts and CPU cooler combinations that GIGABYTE acknowledges through their published incompatibility list. Power efficiency remains behind Gen4 standards, making these drives unsuitable for laptops and contributing to the thermal challenges that necessitate aggressive cooling in the first place. Perhaps most critically, the impending arrival of 14,000 MB/s third-generation Gen5 drives announced for early 2024 threatens to make the Gen5 12000 feel slow before it even gains meaningful market traction, leaving early adopters in an awkward position.

Verdict: Should You Buy It?

Buy this if: you're building or upgrading a high-end desktop PC with a PCIe 5.0 x4 M.2 slot and specifically need maximum sequential bandwidth for large file transfers, you regularly work with massive video files or raw photo collections where every second of transfer time impacts your workflow, you're already invested in the GIGABYTE AORUS ecosystem and value the Control Center integration, you prioritize having a premium passive cooling solution that prevents thermal throttling without adding fan noise, you can find the 2TB model on sale approaching $250 or less making the cost-per-gigabyte penalty less painful, or you're the type of enthusiast who simply wants the fastest storage available regardless of whether everyday tasks demonstrate meaningful improvements over Gen4 alternatives.

Skip this if: you're considering the 1TB capacity since it delivers substantially worse performance than the 2TB model while costing $160—spend $80-100 on a premium Gen4 drive like the Samsung 990 Pro or WD_BLACK SN850X instead and pocket the difference, you don't have a motherboard with PCIe 5.0 M.2 support since you'll be limited to Gen4 speeds while paying Gen5 pricing, your workloads consist primarily of gaming and general productivity where the real-world performance gap between Gen5 and high-end Gen4 drives remains imperceptible during actual use, you need storage for a PlayStation 5 or laptop since Gen5 drives currently aren't compatible with PS5 and consume too much power for mobile platforms, you're building in a compact case where the Thermal Guard XTREME's dimensions might create clearance issues with graphics cards or CPU coolers, or you'd prefer to wait several months for third-generation 14,000 MB/s Gen5 drives that will render the Gen5 12000's performance underwhelming while likely arriving at similar pricing points.
