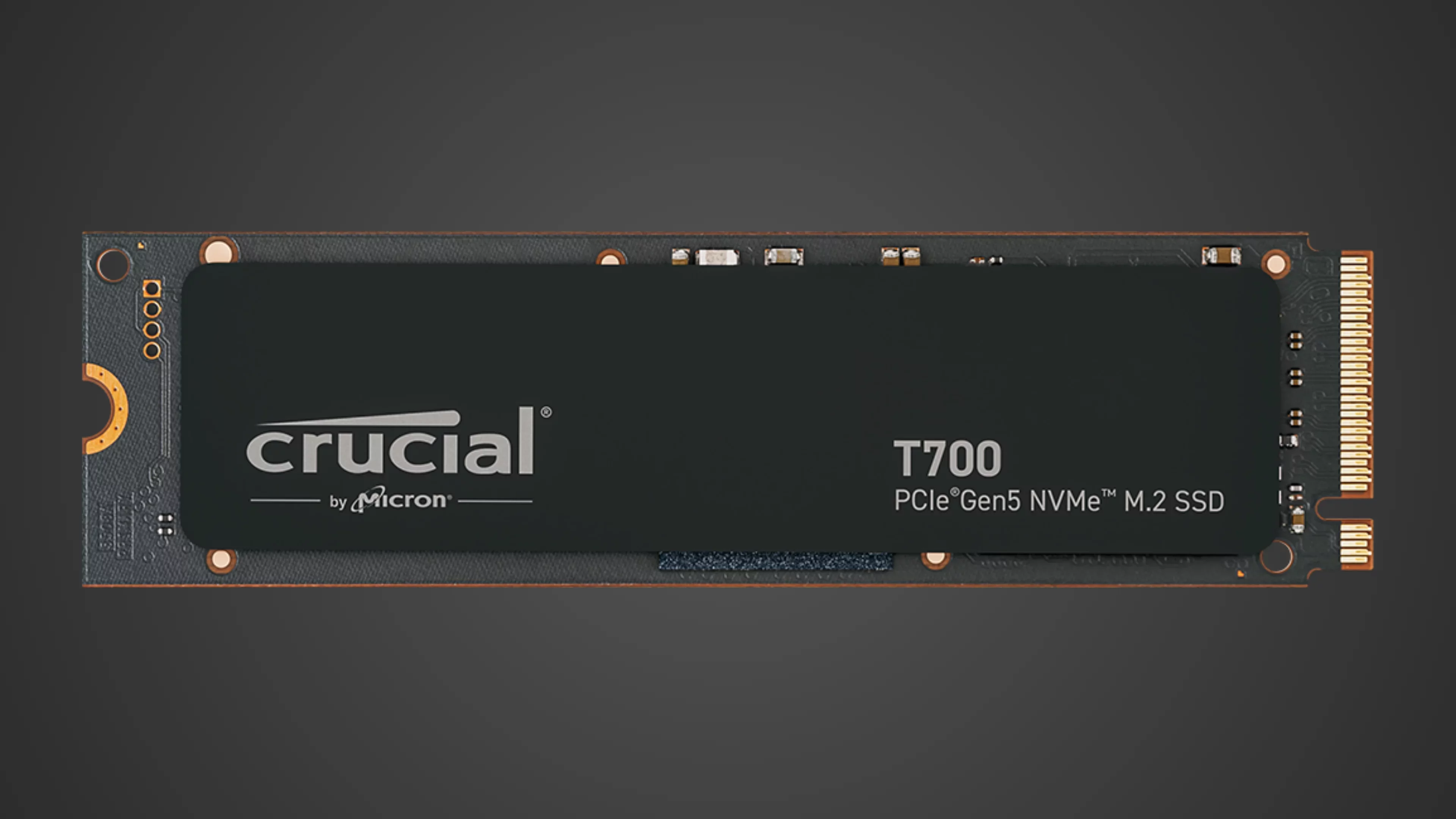

Crucial T700

^{M.2 2280 NVMe PCIe Gen 5}

Introduction

The Crucial T700 represents a significant leap in solid-state drive technology, offering blazing-fast speeds that push the boundaries of PCIe 5.0 capabilities. As one of the first consumer-grade PCIe 5.0 SSDs on the market, the T700 sets a new standard for high-performance storage solutions.

Product Overview

The Crucial T700 is a cutting-edge NVMe SSD designed for enthusiasts, content creators, and professionals who demand the utmost in storage performance. Available in capacities of 1TB, 2TB, and 4TB, this drive utilizes the latest PCIe 5.0 interface to deliver unprecedented read and write speeds, making it an ideal choice for high-end desktop PCs and workstations.

Key Features

Phison E26 Controller

At the heart of the T700 is the Phison E26 controller, specifically engineered to harness the full potential of the PCIe 5.0 interface. This controller enables the drive to achieve its remarkable speed and efficiency.

Micron 232-Layer 3D TLC NAND

The T700 incorporates Micron's advanced 232-layer 3D TLC NAND flash memory, operating at an impressive 2000MT/s. This cutting-edge NAND technology contributes to the drive's exceptional performance and reliability.

Microsoft DirectStorage Optimization

With firmware optimized for Microsoft DirectStorage, the T700 is primed for next-generation gaming experiences. This feature allows for faster texture rendering and reduced load times, particularly beneficial for open-world games and large-scale environments.

Performance Analysis

Sequential Speeds

The Crucial T700 boasts extraordinary sequential read speeds of up to 12,400 MB/s and write speeds of up to 11,800 MB/s for the 2TB and 4TB models. These figures represent a significant leap over PCIe 4.0 SSDs, which typically max out around 7,000 MB/s. The 1TB variant, while slightly slower, still impresses with read speeds of 11,700 MB/s and write speeds of 9,500 MB/s.

Random Performance

Random performance is equally impressive, with the T700 capable of achieving up to 1,500K IOPS for both random reads and writes. This level of performance ensures snappy responsiveness in tasks involving numerous small file operations, such as application loading and multitasking.

Thermal Management

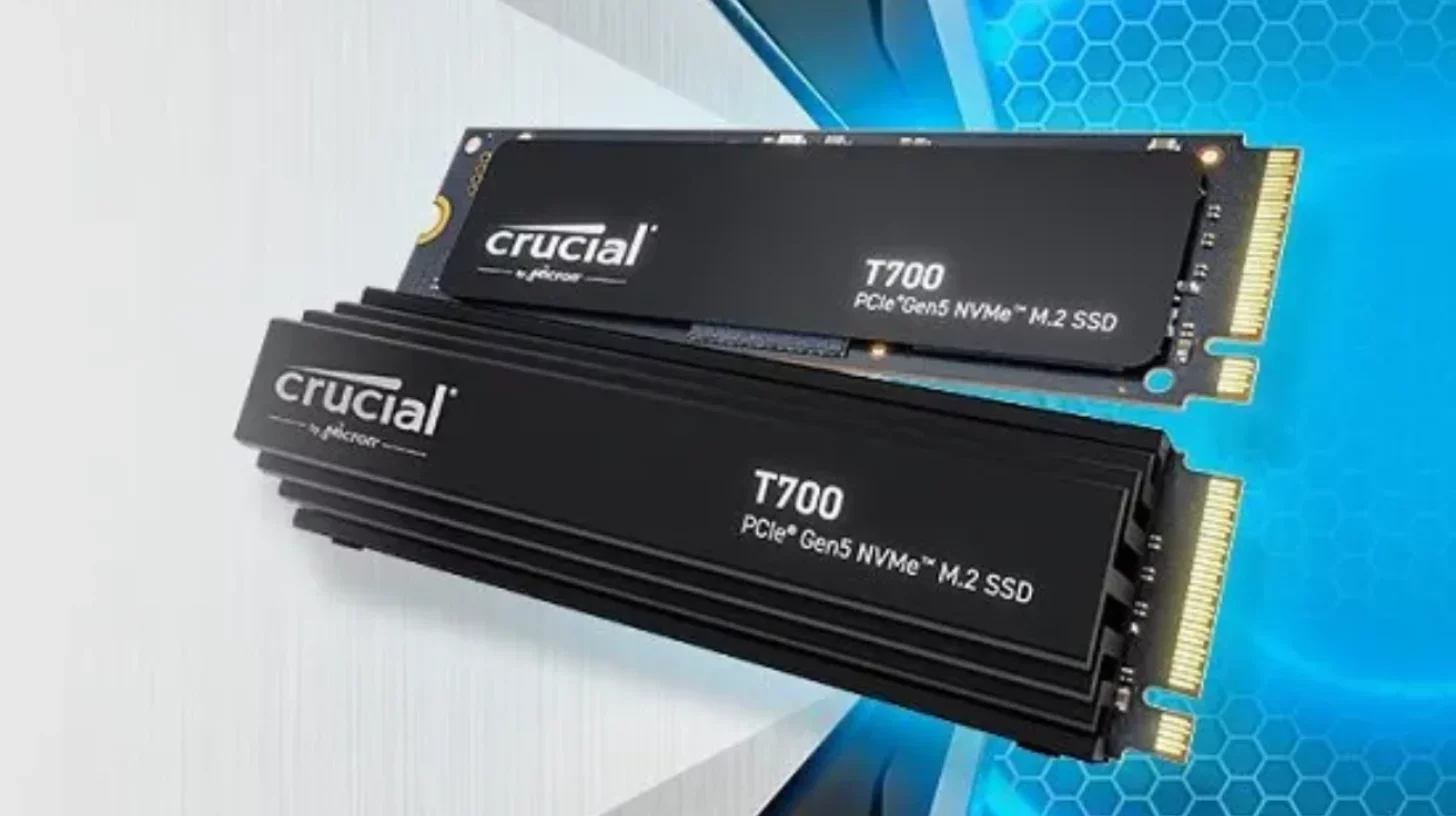

The T700 is available in both bare drive and heatsink-equipped variants. The heatsink version features a custom-designed passive cooling solution that combines aluminum and nickel-plated copper to effectively dissipate heat without the need for noisy fans or liquid cooling. This thermal management is crucial, as the drive can reach temperatures of up to 87°C under sustained workloads, necessitating adequate cooling to maintain optimal performance.

Compatibility

PlayStation 5

While the T700 is primarily designed for PCIe 5.0 systems, it offers backward compatibility with PCIe 4.0 interfaces. This makes it theoretically compatible with the PlayStation 5, which uses a PCIe 4.0 M.2 slot. However, users should be aware that the full potential of the drive will not be realized in this configuration.

Xbox Series X/S

The Xbox Series X/S consoles do not support user-upgradable internal SSDs, making the T700 incompatible with these systems.

Steam Deck and Handheld PCs

The T700's M.2 2280 form factor is too large for most handheld PCs, including the Steam Deck, which typically use smaller M.2 2230 drives. Additionally, these devices generally do not support PCIe 5.0 speeds.

Raspberry Pi

The Raspberry Pi does not have native support for NVMe SSDs, making the T700 incompatible without additional adapters and modifications.

Advantages and Limitations

Strengths

Unparalleled sequential read and write speeds
High random I/O performance for improved system responsiveness
Available in capacities up to 4TB
DirectStorage optimization for enhanced gaming performance
Backward compatibility with PCIe 3.0 and 4.0 systems

Constraints

Requires a PCIe 5.0-compatible motherboard and CPU for full performance
Higher power consumption compared to PCIe 4.0 SSDs
Potential for thermal throttling without adequate cooling
Premium pricing compared to PCIe 4.0 alternatives
Limited real-world performance gains in many current applications

Conclusion

The Crucial T700 PCIe 5.0 NVMe SSD represents the pinnacle of consumer storage technology, offering unprecedented speeds and performance. While its full potential is currently limited to high-end systems with PCIe 5.0 support, it provides a glimpse into the future of storage technology. For enthusiasts, content creators, and professionals working with large datasets or demanding applications, the T700 offers a compelling solution that pushes the boundaries of what's possible in storage performance.

Works Cited

Downing, Shane. "Crucial T700 SSD Review: The Temporary King." Tom's Hardware, www.tomshardware.com/reviews/crucial-t700-ssd-review. Accessed 26 Feb. 2025.

"Crucial T700 Review." PCMag, www.pcmag.com/reviews/crucial-t700. Accessed 26 Feb. 2025.

"Crucial T700 NVMe SSD Review." MMORPG.com, www.mmorpg.com/hardware-reviews/crucial-t700-nvme-ssd-review-2000128168. Accessed 26 Feb. 2025.

"Crucial T700 Review: The Fastest PCIe 5 SSD For Enthusiasts." Hot Hardware, hothardware.com/reviews/crucial-t700-pcie-5-nvme-ssd-review. Accessed 26 Feb. 2025.

"Crucial T700 4TB SSD Review: Large Capacity and Max Performance." Tom's Hardware, www.tomshardware.com/pc-components/ssds/crucial-t700-4tb-ssd-review. Accessed 26 Feb. 2025.
