Corsair MP700 PRO XT

Introduction

The Corsair MP700 PRO XT represents a significant shift in the Gen5 SSD landscape. If you're a PC enthusiast building a new high-performance rig, a gamer tired of load screens, or a content creator pushing massive 4K video files around, this drive deserves serious consideration. Unlike earlier PCIe 5.0 drives that guzzled power and turned into miniature space heaters, the MP700 PRO XT is built around Phison's revolutionary PS5028-E28 controller, the first eight-channel Gen5 controller designed to deliver flagship speeds without destroying your laptop's battery life or requiring industrial cooling solutions. This is a PCIe 5.0 NVMe M.2 2280 drive positioned in the premium enthusiast segment, competing directly with Samsung's 990 PRO and WD's Black SN850X while offering something those Gen4 drives simply cannot match: genuine next-generation throughput.

Product Overview

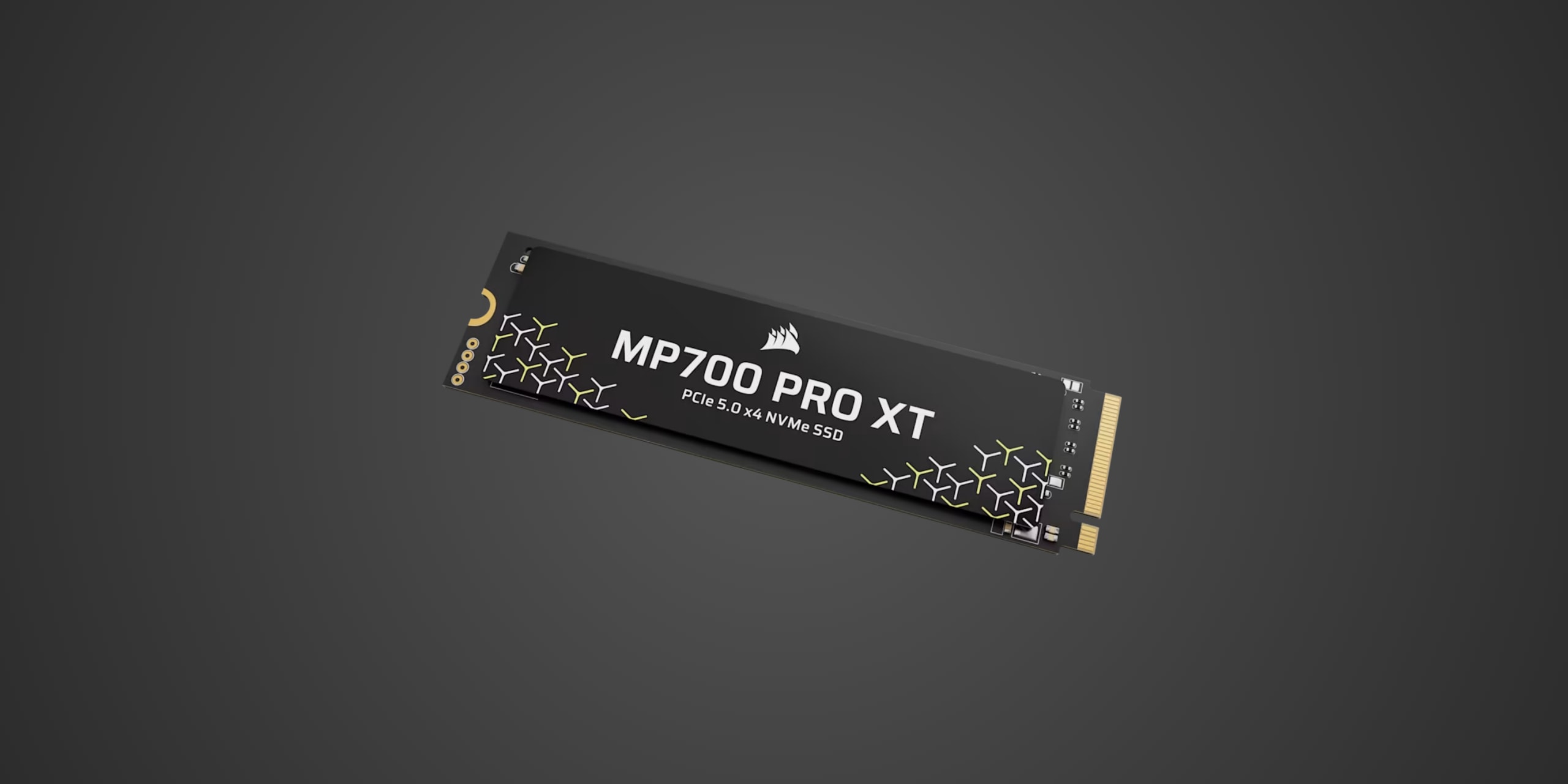

The Corsair MP700 PRO XT arrives in a standard M.2 2280 form factor, making it compatible with virtually every modern motherboard M.2 slot and the PlayStation 5's internal expansion bay. It communicates over the PCIe 5.0 interface using four lanes and supports the NVMe 2.0 protocol. At the heart of this drive sits Phison's groundbreaking PS5028-E28 controller, an eight-channel design that represents a fundamental rethinking of Gen5 architecture. Where previous Gen5 controllers prioritized raw speed at any power cost, the E28 achieves remarkable efficiency by intelligently managing workloads across its channels.

The drive features a 2GB SK Hynix DRAM cache buffer, which acts as a high-speed staging area for frequently accessed data and significantly improves responsiveness in everyday computing tasks. The NAND itself is 3D TLC flash memory, widely believed to be SanDisk's BiCS8 technology based on industry analysis, though Corsair hasn't officially confirmed this. TLC NAND strikes an excellent balance between performance, endurance, and cost, making it the sweet spot for consumer drives. The MP700 PRO XT ships with a thin graphene metal label that provides modest thermal assistance while keeping the drive single-sided, ensuring compatibility with tight spaces including laptop upgrades and the PS5's cramped expansion slot.

Corsair offers the MP700 PRO XT in three capacities: 1TB retailing around $159, 2TB at $249, and 4TB commanding $459. The drive carries a five-year limited warranty and includes AES 256-bit encryption alongside standard features like TRIM support, SMART monitoring, and garbage collection.

Performance & Real World Speed

Corsair rates the MP700 PRO XT at up to 14,900 MB/s sequential read and 14,400 MB/s sequential write speeds, with random performance reaching up to 2,700K read IOPS and 3,300K write IOPS in 4K operations. These numbers place it firmly in flagship territory, substantially faster than even the quickest PCIe 4.0 drives on the market.

What does this mean when you're actually using the drive? If you're upgrading from a SATA SSD, you're looking at game load times that shrink from 30-40 seconds down to 5-10 seconds in modern AAA titles. Windows boot times drop from double digits to just a few seconds from power button to desktop. Large file transfers that previously crawled along at 500-600 MB/s now complete at speeds approaching 15 GB/s under ideal conditions, meaning a 100GB video project that took three minutes to copy now finishes in seven seconds.

For gamers, the MP700 PRO XT is fully DirectStorage ready, Microsoft's API that allows games to stream assets directly from your SSD to your GPU without taxing your CPU. As more games adopt this technology, drives like this will deliver not just faster load times but fundamentally better in-game performance with seamless texture streaming and virtually eliminated pop-in.

Content creators working with 4K and 8K footage will appreciate the sustained write performance. Where many drives rely on SLC caching that runs out after writing 50-100GB at high speed, the combination of the E28 controller's efficiency and robust DRAM cache means the MP700 PRO XT maintains remarkably consistent speeds even during extended transfers. You're not stuck watching progress bars crawl to a halt halfway through dumping a day's worth of footage.

The standout characteristic of this drive is what happens during light workloads. Independent testing shows the E28 controller delivers over an hour of additional laptop battery life compared to competing Gen5 solutions, rivaling even power-sipping Gen4 drives. This efficiency doesn't come at the expense of responsiveness either; random read and write performance remains sharp, keeping everyday tasks like application launches and web browsing snappy.

Thermal Management

PCIe 5.0 drives have earned a reputation as thermal troublemakers, and for good reason. The first wave of Gen5 SSDs could easily hit 80-85°C under sustained loads, triggering thermal throttling that crippled performance. The MP700 PRO XT takes a fundamentally different approach. The Phison E28 controller operates at significantly lower power levels, with active power consumption under 6.5 watts and sleep power dropping to an almost negligible 5 milliwatts. This isn't just good for battery life in laptops; it means the drive simply doesn't generate the intense heat that plagued earlier Gen5 models.

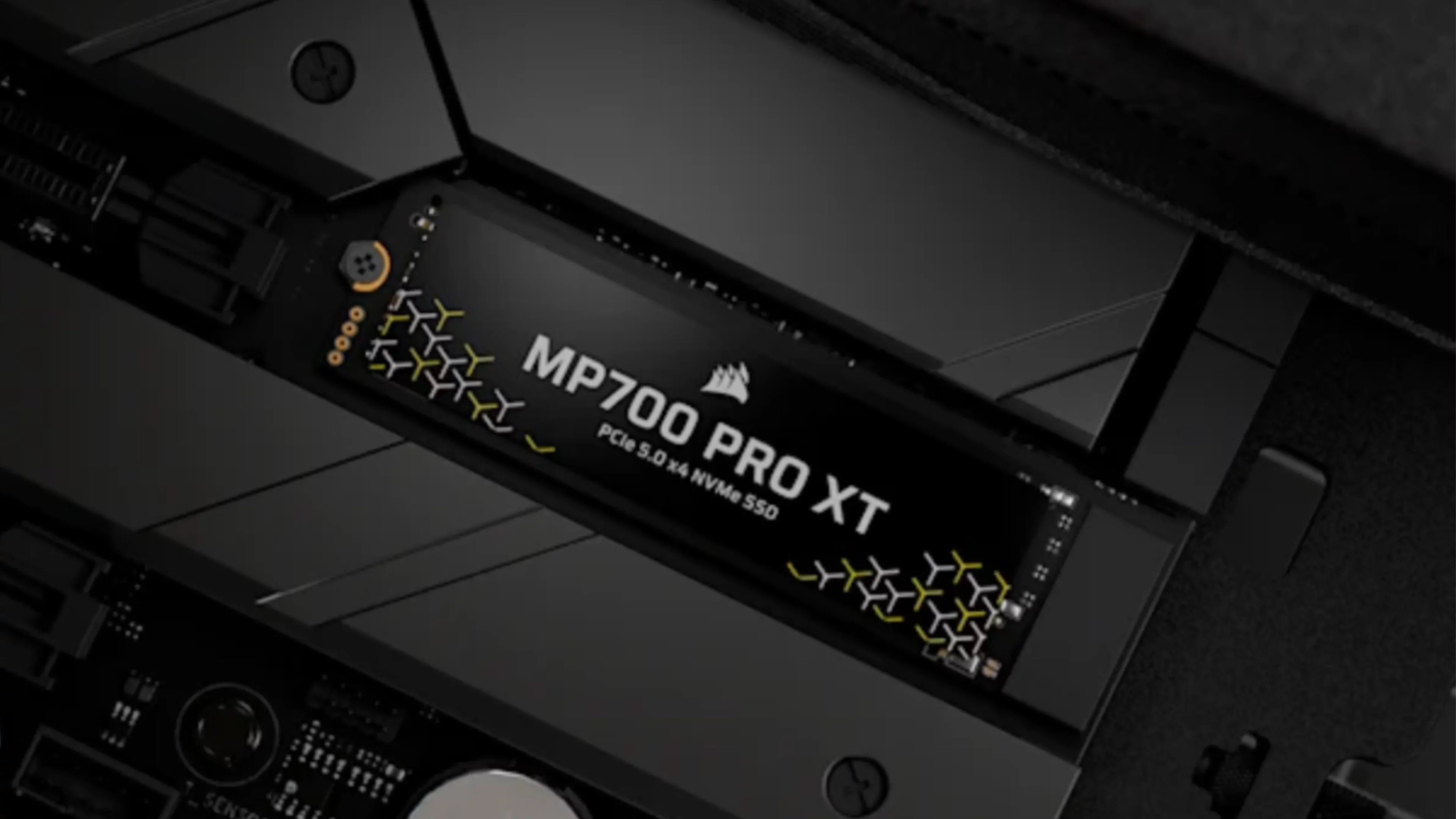

The included graphene thermal label provides modest but meaningful cooling assistance, and because the drive uses single-sided component placement, it maintains excellent thermal contact with whatever cooling solution you pair it with. Most modern motherboards include M.2 heatsinks as standard equipment, and these work extremely well with the MP700 PRO XT. The drive's thermal efficiency means you won't see significant throttling even during extended benchmark runs or large file transfers, maintaining performance consistency that matters far more than peak numbers.

For PlayStation 5 users, this thermal efficiency is particularly valuable. Sony requires M.2 expansion drives to include heatsinks, and the PS5's internal airflow isn't particularly generous. The MP700 PRO XT's cool-running nature means it won't turn your console into a furnace, and when paired with a low-profile aftermarket heatsink like Corsair's own MP600 heatsink or similar solutions from EKWB or Sabrent, it stays well within safe operating temperatures even during marathon gaming sessions.

If you're installing this in a high-end desktop with substantial M.2 cooling, you'll see temperatures hovering in the comfortable 40-50°C range during normal use and perhaps touching 60-65°C under sustained workloads. If your motherboard lacks adequate cooling or you're upgrading a laptop, consider adding a thin aftermarket heatsink, though the drive's efficiency means it's less critical than with competing Gen5 options.

Compatibility

The MP700 PRO XT uses a standard M.2 Key M interface and requires a PCIe 4.0 or PCIe 5.0 x4 M.2 slot on your motherboard. The drive is fully backward compatible with PCIe 4.0 and 3.0 slots, though you'll obviously see reduced performance when operating at lower PCIe generations. Any motherboard manufactured in the last five years with an M.2 NVMe slot will work, though you'll want to verify BIOS support for NVMe drives if you're working with older hardware. Modern UEFI implementations have no issues recognizing and booting from NVMe drives.

Operating system support is universal across Windows 10 and 11, Linux distributions, and macOS when installed in compatible Mac systems or Hackintosh builds. The drive requires no special drivers beyond what's included in modern operating systems. Power requirements are minimal and well within what any desktop or laptop M.2 slot provides, so there are no concerns about power delivery.

For PlayStation 5 internal expansion, this is where things get interesting. The MP700 PRO XT absolutely meets Sony's technical requirements: it's a PCIe 4.0 NVMe drive that exceeds the mandatory 5,500 MB/s read speed threshold, coming in nearly three times faster at 14,900 MB/s. It uses the correct M.2 2280 form factor. However, there's one critical requirement you must address: Sony mandates that expansion drives include a heatsink, and the MP700 PRO XT's thin graphene label doesn't count as adequate cooling in Sony's eyes. You'll need to add a low-profile aftermarket heatsink that keeps total drive height under 11.25mm including the heatsink. Options like the EKWB EK-M.2 NVMe Heatsink or Sabrent's M.2 2280 heatsink work perfectly and cost around fifteen dollars. Once properly equipped with cooling, the MP700 PRO XT becomes an exceptional PS5 expansion drive, offering vastly more performance than Sony's minimum requirements and enough capacity to store your entire library.

For Xbox Series X and Series S users, understand this clearly: the MP700 PRO XT is not compatible with Xbox internal storage expansion. Microsoft designed the Xbox Series consoles to exclusively use proprietary Seagate Storage Expansion Cards for internal game storage. No standard M.2 NVMe drive, regardless of speed or brand, will work for expanding Xbox Series optimized game storage. You can use the MP700 PRO XT in a USB enclosure to store Xbox One games for play or to archive Xbox Series titles for later transfer back to internal storage, but that's not the same as true expansion capability.

Strengths & Weaknesses

The MP700 PRO XT's greatest strength lies in its remarkable balance of performance and efficiency. Where competing Gen5 drives forced you to choose between blistering speed and reasonable power consumption, this drive delivers both. The Phison E28 controller's architecture achieves speeds that embarrass even flagship Gen4 drives while sipping power like a mid-range PCIe 3.0 model. This efficiency translates directly into real-world benefits: longer laptop battery life, lower operating temperatures, reduced need for aggressive cooling solutions, and sustained performance that doesn't crater after the SLC cache runs out.

The presence of DRAM cache distinguishes the MP700 PRO XT from cheaper DRAMless alternatives, providing snappier responsiveness during everyday computing tasks and significantly better performance consistency under mixed workloads. When you're juggling multiple applications, streaming content, running background downloads, and gaming simultaneously, DRAM cache prevents the drive from stuttering under pressure.

Endurance figures for the 2TB model aren't explicitly published by Corsair, but drives using similar TLC NAND configurations typically offer around 1,200-1,400 TBW total bytes written, which translates to writing roughly 300-400GB daily for five years. That's more than sufficient for consumer workloads including gaming, content creation, and general productivity. The five-year warranty provides solid peace of mind, matching what premium competitors offer.

Price positioning presents both a strength and a potential weakness. At $249 for the 2TB model, the MP700 PRO XT commands a premium over many Gen4 alternatives. You can find excellent PCIe 4.0 drives like the Crucial P5 Plus or WD Black SN850X for $50-70 less at the same capacity. However, when comparing against other Gen5 drives, the MP700 PRO XT's pricing is competitive, and its efficiency advantages justify the cost for users who value battery life or run sustained workloads.

The drive's thermal characteristics represent a significant advantage over first-generation Gen5 competitors. Where drives like the Crucial T700 or Samsung 990 PRO absolutely require substantial heatsinks and aggressive cooling, the MP700 PRO XT operates comfortably with standard motherboard cooling. This makes it far more practical for laptop upgrades and SFF builds where cooling options are limited.

One potential consideration involves the unconfirmed NAND sourcing. While industry analysis points to SanDisk BiCS8 TLC NAND, Corsair hasn't officially disclosed the NAND manufacturer. For most users this matters little, but enterprise customers or those with specific NAND preferences might want clarity. The practical performance characteristics suggest the NAND is high-quality regardless of its exact origin.

Competition in the Gen5 space is heating up rapidly. The Crucial T700 offers slightly higher peak speeds but runs significantly hotter and consumes more power. The Samsung 990 PRO remains the Gen4 performance king with excellent efficiency, though it can't match Gen5 throughput. The WD Black SN850X provides outstanding gaming performance at lower prices but again tops out at Gen4 speeds. What sets the MP700 PRO XT apart is offering Gen5 performance without Gen5 thermal penalties, creating a unique position in the market.

Verdict: Should You Buy It?

Buy this if:

• You're building a new high-performance gaming or workstation PC with PCIe 5.0 support and want to future-proof with next-generation speeds

• You're upgrading your laptop and need flagship performance without destroying battery life

• You're expanding PlayStation 5 storage and want massive performance overhead beyond Sony's minimum requirements with a compatible heatsink

• You work with large files regularly and sustained transfer speeds matter more than just peak burst performance

• You value thermal efficiency and want a Gen5 drive that doesn't require industrial cooling solutions

• You're coming from a SATA SSD or older PCIe 3.0 drive and want genuinely transformative performance gains

Skip this if:

• You already own a high-end PCIe 4.0 drive like the Samsung 990 PRO or WD SN850X and the upgrade would be marginal for your workload

• Budget constraints make the $50-70 premium over excellent Gen4 alternatives difficult to justify

• You primarily perform light computing tasks that won't benefit from Gen5 speeds

• You need absolute maximum capacity and would rather stretch budget toward 4TB Gen4 than 2TB Gen5

• Your motherboard or laptop only supports PCIe 3.0, negating the Gen5 speed advantage entirely
